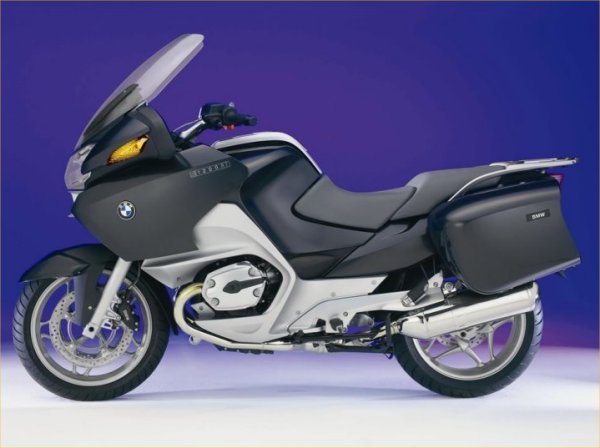

BMW R1200RT

Specifications

Engine and transmission

Displacement: 1170 cc (71.39 cubic inches)

Engine type: Two cylinder boxer SOHC w/ counter balance shaft

Power: 110 HP @ 7500 RPM

Torque: 84.8 ft.lbs @ 6000

Compression: 12.0:1

Bore x stroke: 101.0 x 73.0 mm (4.0 x 2.9 inches)

Fuel system: Injection

Valves per cylinder: 4

Cooling system: Oil & air

Gearbox: 6-speed

Final drive: Shaft drive

Top speed: 125 mph

Alternator: 720 watts, 60 amps

Physical measures

Dry weight: 449 lbs (25 lbs less than R1150RS)

Wet weight: 521 lbs

Seat height: ? inches

Wheelbase: ? inches

Overall length: ? inches

Overall width: ? inches

Overall height: ? inches

Fuel capacity: ? gallons including ? gallon reserve

Chassis and dimensions

Frame type: Three-section composite frame consisting of front and rear section, load bearing engine.

Front suspension: BMW Motorrad Telelever; stanchion diameter 41 mm, central spring strut, spring pre-load 9-way adjustable

Front suspension travel: 120 mm (4.7 inches)

Rear suspension: Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable, rebound damping adjustable

Rear suspension travel: 135 mm (5.3 inches)

Front tyre dimensions: 120/70 ZR 17

Rear tyre dimensions: 180/55 ZR 17

Front brakes: Double disc, 320 mm (12.65 inches)

Rear brakes: Single disc, 265 mm (10.4 inches)
